Auto-Feed Riveting Gun, Fast Jam-Free Feeding, 1 Machine Replaces 3 Workers - Antec
Brand: Antec
Pull Force: 20,000 N
Power Supply: 220V 50Hz
Dimensions: 555*420*400mm
Fast Jam-Free Feeding, 1 Machine Replaces 3 Workers. Machines, matching rivets and original spare parts can be ordered together, so procurement is handled by one supplier with bulk pricing and global shipping. Bulk purchasing, specification customization, global shipping and full technical support streamline procurement.
+86 13556668682
Product IntroductionAntec
Standard Auto-Feed Auto-Feed Riveting Gun - Product Introduction
The standard auto-feed auto-feed riveting gun is our best-selling model, suitable for most general assembly applications. It automatically sorts, aligns and feeds blind rivets to the gun head, eliminating manual rivet insertion and reducing operator fatigue. One machine replaces 3 manual workers, with stable jam-free operation and cycle time up to 70 rivets per minute. Standard models are in stock for fast global shipping, and can be customized for different rivet sizes and workpiece requirements.
Core Features
| No. | Core Feature | Description |
|---|---|---|
| 1 | Automatic Feeding | Rivets poured into the hopper are automatically aligned and delivered through the feed tube to the gun nozzle — no manual loading |
| 2 | Automatic Refill | After each riveting cycle, the next rivet is loaded automatically, with no manual intervention |
| 3 | Smart Counting | Digital display counts rivets in real time, with error-proofing against missed rivets |
| 4 | Mandrel Collection | Spent mandrels are automatically returned through the mandrel tube to a collection bin, keeping the workplace clean |
| 5 | Reliable Quality | Imported components; 30,000-cycle riveting test without jams; low failure rate and 10+ year service life |
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Brand | Antec | Source manufacturer, factory direct |
| Rivet Pulling Capacity | 20,000 N | Typical model pull force; larger specifications customizable |
| Cycle Speed | Approx. 70 cycles/min (approx. 1.2 s per rivet) | Automatic feeding and refilling for continuous operation |
| Feeding Method | Automatic compressed-air conveying | Rivets travel through the feed tube directly to the gun nozzle; no manual picking or positioning |
| Applicable Rivets | Aluminum, iron and stainless steel blind rivets | Specifications customized to the workpiece |
| Control System | PLC smart control | Digital count display, error-proofing against missed rivets |
| Working Voltage | 220V / 50Hz | — |
| Main Unit Dimensions | 555 × 420 × 400 mm | Workbench and fixtures designed to the workpiece |
| Mandrel Handling | Automatic collection through mandrel tube to bin | Keeps the workplace clean |
| Reliability | 30,000 continuous riveting cycles without jams | Imported components; three-jaw life approx. 6 million cycles; shipping failure rate approx. 0.3% |
| Design Life | 10+ years | — |
| Warranty | 1-year whole-machine warranty | 7-day return and 15-day replacement for non-human issues; free factory installation and commissioning |
Related ProductsAuto-Feed Gun
-
Auto-Feed Riveting Gun, Video, Working D···Video, Working Demo, Ja···Read More -
Auto-Feed Riveting Gun, Vibrating Bowl A···Vibrating Bowl Auto Loa···Read More -

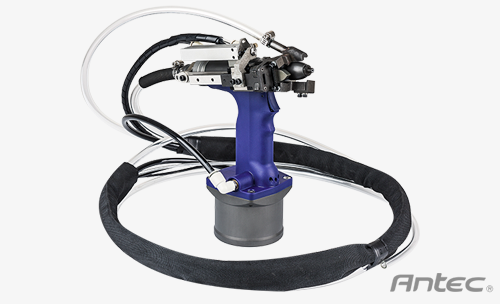

Auto-Feed Riveting Gun, Fast Feeding, El···Fast Feeding, Electroni···Read More -
Auto-Feed Riveting Gun, Dual-Gang Dual-G···Dual-Gang Dual-Gun Mode···Read More -

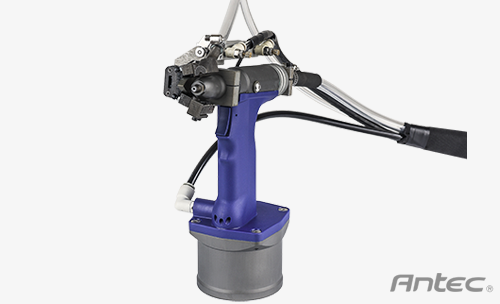

Auto-Feed Riveting Gun, Lighting Industr···Lighting Industry Rivet···Read More -
Auto-Feed Riveting Gun, Fast Jam-Free Fe···Fast Jam-Free Feeding, ···Read More
Company StrengthsAntec
-
-
One supplier for the whole riveting process
Machines, matching rivets and original spare parts can be ordered together, so procurement is handled by one supplier with bulk pricing and global shipping. Bulk purchasing, specification customization, global shipping and full technical support streamline procurement. Production and design work closely together, earning strong industry recognition for quality and reputation.
-
-
Independent intellectual property for custom riveting equipment
Our senior engineers have long focused on developing Auto-Feed Gun, combining domestic and international mechanical technology and continuously improving products to fit customer needs. We are certified under an intellectual property management system and hold multiple patents for Auto-Feed Gun.
-
-
Strict quality control system ensures product quality
As a source manufacturer that designs and builds Auto-Feed Gun in-house, we use imported components and run 30,000 continuous riveting tests to ensure jam-free operation. The automatic refill system self-corrects, the failure rate is 0.3%, performance is stable, the repeat purchase rate is 78%, and service life reaches 10+ years.
-
-
Dedicated 24/7 service to solve your needs efficiently
One-to-one online support responds quickly and provides a complete solution within 10 minutes through a timely-response service mechanism. Free maintenance and trial services are available, with a 1-year warranty and factory installation. Non-human issues are covered by a 7-day return and 15-day exchange policy.
